Terraform 102 deploying ASG and ELB
NOTE: All configurations were taken from a lab environment.
Introduction

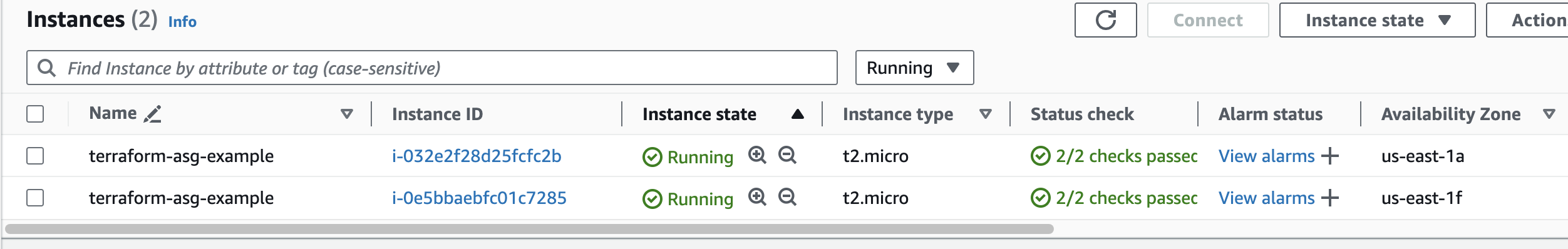

In this guide, we are going to create EC2 instances using Auto Scaling groups (ASG). The EC2 instances will run a very simple web servers and these will be behind an Elastic Load Balancer (ELB). This infrastructure will be provisioned with Terraform.
Here a summary of all the AWS resources to deploy along with a link to their corresponding Terraform documentation.
| AWS element | Terraform Documentation |
|---|---|
| Launch Configuration | Resource: aws_launch_configuration |
| Security Group | Resource: aws_security_group |
| Data Source AWS VPC | Data Source: aws_vpc |
| Auto Scaling groups | Resource: aws_autoscaling_group |
| Elastic Load Balancer | Resource: aws_lb |
| Listener | Resource: aws_lb_listener |
| Listener Rule | Resource: aws_lb_listener_rule |
| Target Group | Resource: aws_lb_target_group |

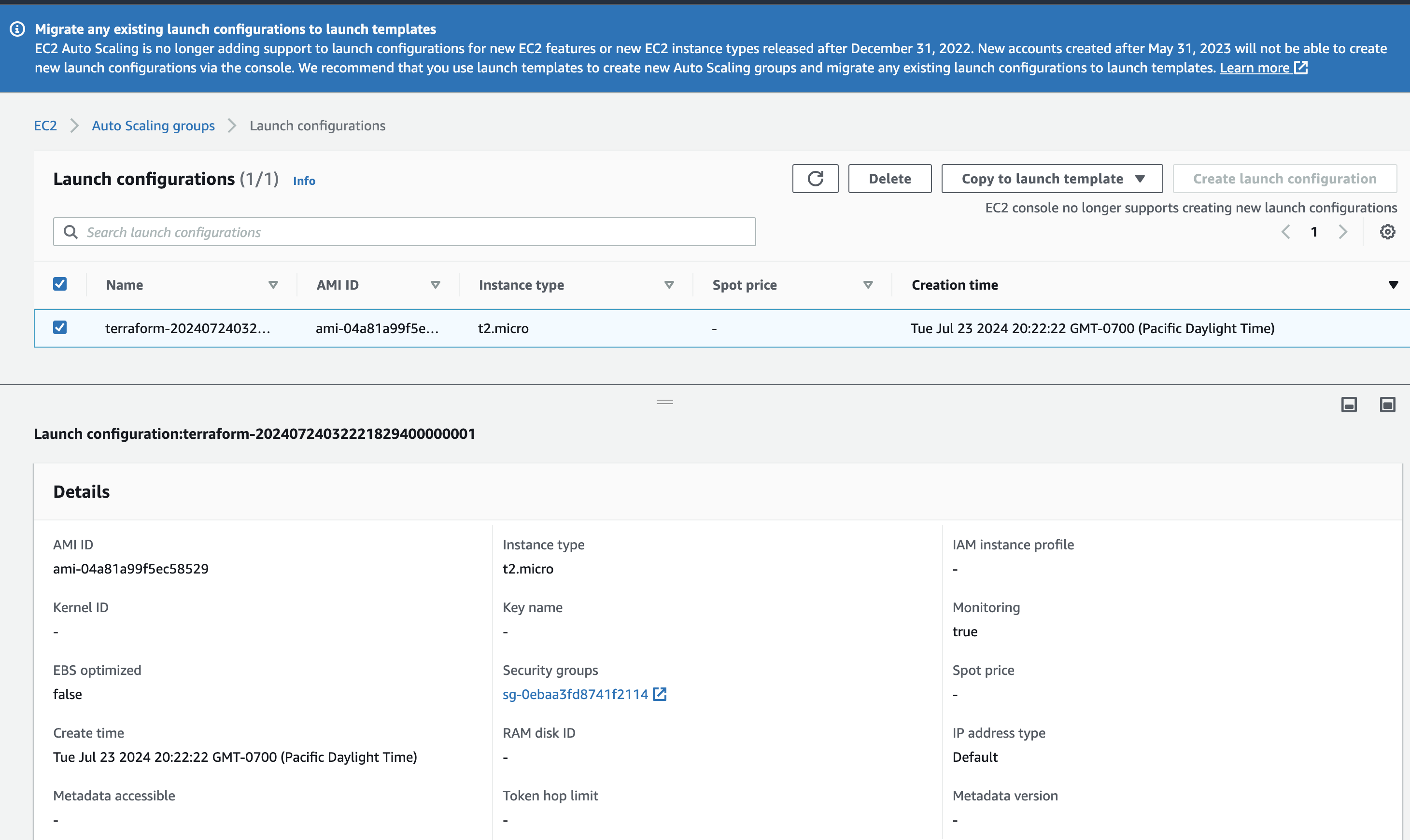

Launch Configuration
The Launch Configuration will be referenced by the Auto Scaling group. It is the template to know the characteristics about the EC2 instances to launch.
The aws_launch_configuration resource is very similar to the aws_instance resource with some subtle differences:
aws_launch_configuration | aws_instance |
|---|---|
| Does not support tags | Supports tags |
Does not need the user_data_replace_on_change argument | Supports the optional user_data_replace_on_change argument |
image_id argument to specify the AMI ID | ami argument to specify the AMI ID |
security_groups argument to specify the SG | vpc_security_group_ids argument to specify the SG |
Here the Terraform code to configure the Launch Configuration. Since the EC2 instances will have a Security Group attached, we also need to explicitly attach a Security Group opened with the tcp port 80 in the Inbound direction.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
resource "aws_launch_configuration" "example" {
image_id = "ami-04a81a99f5ec58529"
instance_type = "t2.micro"
security_groups = [aws_security_group.instance.id]
user_data = <<-EOF
#!/bin/bash
echo "Hello, World" > index.html
nohup busybox httpd -f -p ${var.server_port} &
EOF
# Required when using a launch configuration with an auto scaling group.
lifecycle {
create_before_destroy = true
}
}

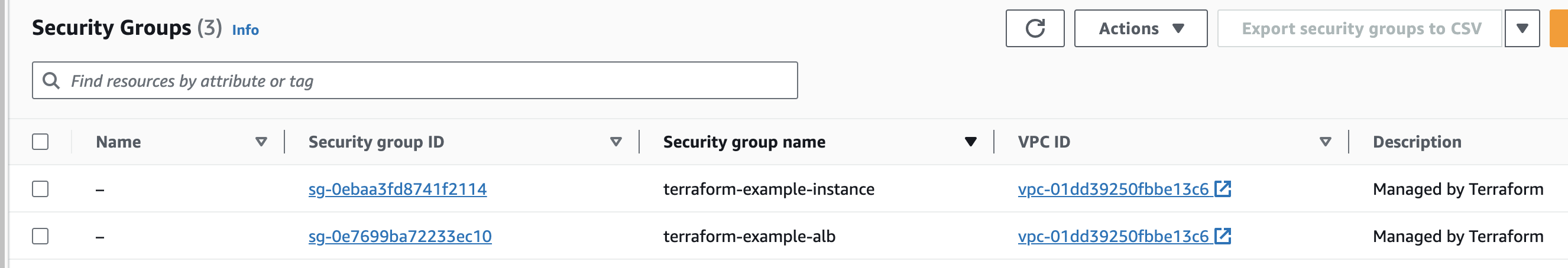

resource "aws_security_group" "instance" {
name = "terraform-example-instance"
ingress {
from_port = var.server_port
to_port = var.server_port
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
}
}
variable "server_port" {
description = "The port the server will use for HTTP requests"
type = number
default = 80
}
According to the documentation: Resource: aws_launch_configuration
Launch Configurations cannot be updated after creation with the Amazon Web Service API. In order to update a Launch Configuration, Terraform will destroy the existing resource and create a replacement. In order to effectively use a Launch Configuration resource with an AutoScaling Group resource, it’s recommended to specify create_before_destroy in a lifecycle block.

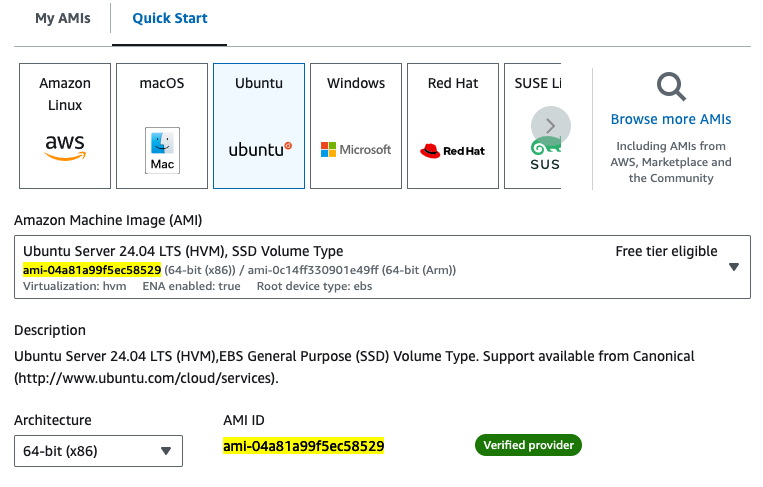

NOTE: The AMI is AWS region dependent. So, it is different on every region even for the same OS. This is the one for Ubuntu Server 24.04 LTS in us-east-1.

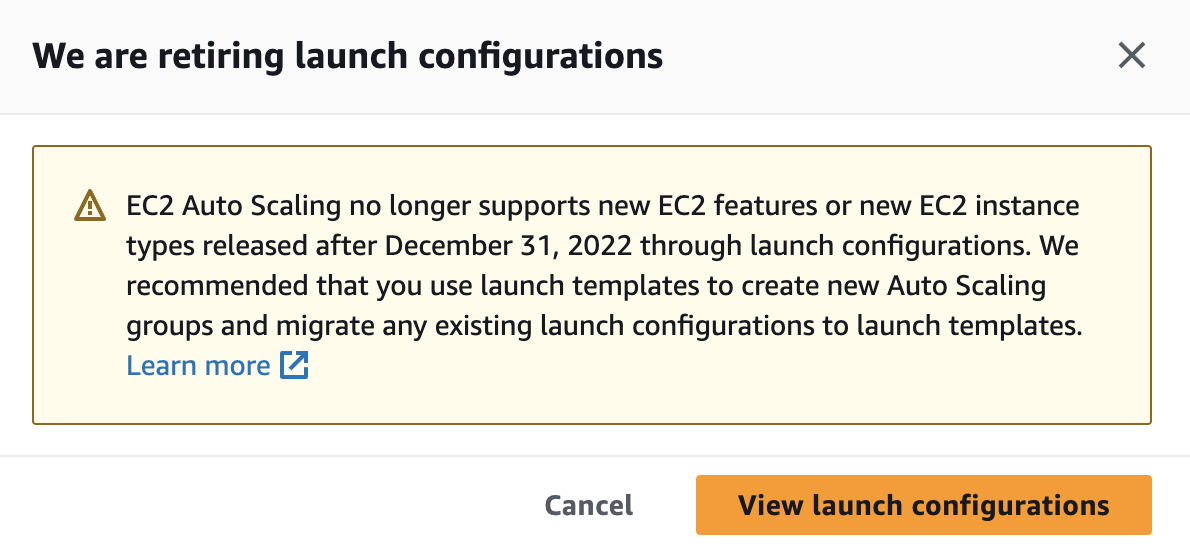

NOTE: We are using Launch Configurations in this guide. However, these are no longer supported by AWS and we should be using Launch Templates instead.
Data Source
To extract data to be used in the Terraform HCL file.
The Data Source syntax is:
1
2
3
data "<PROVIDER>_<TYPE>" "<NAME>" {
[CONFIG ...]
}
PROVIDERis the name of the provider (in this caseaws)TYPEtype of data source (examplevpc)NAMEidentifier in the Terraform codeCONFIGarguments
The arguments are typically filters. Refer to the documentation Data Source: aws_vpc
To obtain the data:
1
data.<PROVIDER>_<TYPE>.<NAME>.<ATTRIBUTE>
Example, to obtaion the ID of the Default VPC:
1
2
3
data "aws_vpc" "default" {
default = true
}
and to obtain the data:
1
data.aws_vpc.default.id
This can be used to obtain the IDs of the Subnets for a specific VPC:
1
2
3
4
5
6
data "aws_subnets" "default" {
filter {
name = "vpc-id"
values = [data.aws_vpc.default.id]
}
}

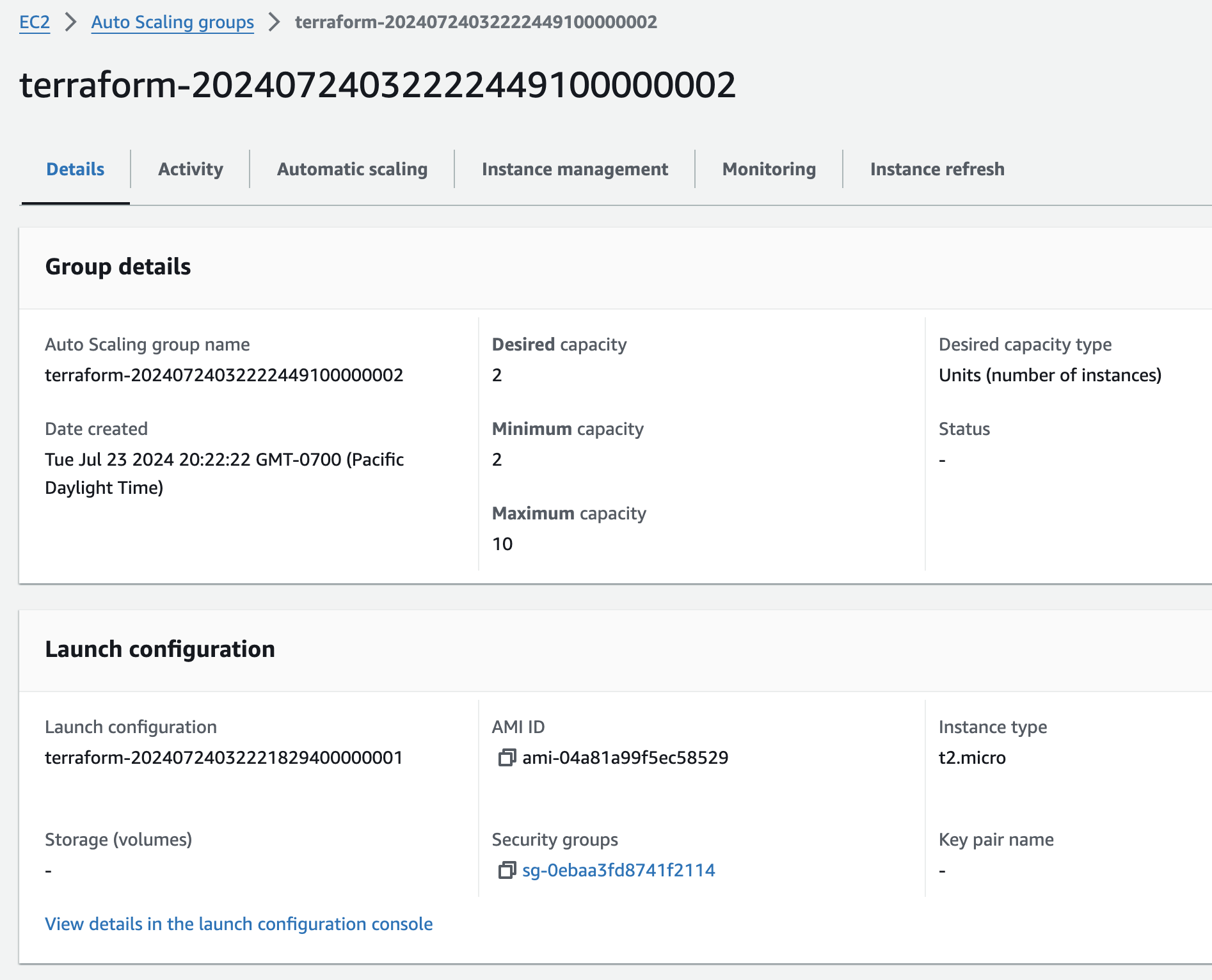

Auto Scaling group
We now configure the Auto Scaling group. The Launch Configuration is referenced in the argument launch_configuration.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
resource "aws_autoscaling_group" "example" {
launch_configuration = aws_launch_configuration.example.name
vpc_zone_identifier = data.aws_subnets.default.ids
min_size = 2
max_size = 10
tag {
key = "Name"
value = "terraform-asg-example"
propagate_at_launch = true
}
}
data "aws_vpc" "default" {
default = true
}
data "aws_subnets" "default" {
filter {
name = "vpc-id"
values = [data.aws_vpc.default.id]
}
}
Launch configuration + ASG in the terraform file
So far, if we put everything together in a single main.tf file.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
provider "aws" {
region = "us-east-1"
}
resource "aws_launch_configuration" "example" {
image_id = "ami-04a81a99f5ec58529"
instance_type = "t2.micro"
security_groups = [aws_security_group.instance.id]
user_data = <<-EOF
#!/bin/bash
echo "Hello, World" > index.html
nohup busybox httpd -f -p ${var.server_port} &
EOF
# Required when using a launch configuration with an auto scaling group.
lifecycle {
create_before_destroy = true
}
}
resource "aws_security_group" "instance" {
name = "terraform-example-instance"
ingress {
from_port = var.server_port
to_port = var.server_port
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
}
}
variable "server_port" {
description = "The port the server will use for HTTP requests"
type = number
default = 8080
}
resource "aws_autoscaling_group" "example" {
launch_configuration = aws_launch_configuration.example.name
vpc_zone_identifier = data.aws_subnets.default.ids
min_size = 2
max_size = 10
tag {
key = "Name"
value = "terraform-asg-example"
propagate_at_launch = true
}
}
data "aws_vpc" "default" {
default = true
}
data "aws_subnets" "default" {
filter {
name = "vpc-id"
values = [data.aws_vpc.default.id]
}
}
terraform init
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
cloud_user@553b1e446c1c:~/asg_elb_terraform$ terraform init
Initializing the backend...
Initializing provider plugins...
- Reusing previous version of hashicorp/aws from the dependency lock file
- Using previously-installed hashicorp/aws v5.59.0
Terraform has been successfully initialized!
You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.
If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.
cloud_user@553b1e446c1c:~/asg_elb_terraform$
terraform plan
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
cloud_user@553b1e446c1c:~/asg_elb_terraform$ terraform plan
data.aws_vpc.default: Reading...
data.aws_vpc.default: Read complete after 1s [id=vpc-01dd39250fbbe13c6]
data.aws_subnets.default: Reading...
data.aws_subnets.default: Read complete after 0s [id=us-east-1]
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
+ create
Terraform will perform the following actions:
# aws_autoscaling_group.example will be created
+ resource "aws_autoscaling_group" "example" {
+ arn = (known after apply)
+ availability_zones = (known after apply)
+ default_cooldown = (known after apply)
+ desired_capacity = (known after apply)
+ force_delete = false
+ force_delete_warm_pool = false
+ health_check_grace_period = 300
+ health_check_type = (known after apply)
+ id = (known after apply)
+ ignore_failed_scaling_activities = false
+ launch_configuration = (known after apply)
+ load_balancers = (known after apply)
+ max_size = 10
+ metrics_granularity = "1Minute"
+ min_size = 2
+ name = (known after apply)
+ name_prefix = (known after apply)
+ predicted_capacity = (known after apply)
+ protect_from_scale_in = false
+ service_linked_role_arn = (known after apply)
+ target_group_arns = (known after apply)
+ vpc_zone_identifier = [
+ "subnet-013196de977c33b7d",
+ "subnet-075866766bdfb54d4",
+ "subnet-0c316180bdeb61390",
+ "subnet-0cee7f5995ad6a557",
+ "subnet-0d9ac99195f2661b7",
+ "subnet-0fd7ed03d1c9cc941",
]
+ wait_for_capacity_timeout = "10m"
+ warm_pool_size = (known after apply)
+ launch_template (known after apply)
+ mixed_instances_policy (known after apply)
+ tag {
+ key = "Name"
+ propagate_at_launch = true
+ value = "terraform-asg-example"
}
+ traffic_source (known after apply)
}
# aws_launch_configuration.example will be created
+ resource "aws_launch_configuration" "example" {
+ arn = (known after apply)
+ associate_public_ip_address = (known after apply)
+ ebs_optimized = (known after apply)
+ enable_monitoring = true
+ id = (known after apply)
+ image_id = "ami-04a81a99f5ec58529"
+ instance_type = "t2.micro"
+ key_name = (known after apply)
+ name = (known after apply)
+ name_prefix = (known after apply)
+ security_groups = (known after apply)
+ user_data = "f656cd9de8860addc5a82630adc18c1b3a4883e5"
+ ebs_block_device (known after apply)
+ metadata_options (known after apply)
+ root_block_device (known after apply)
}
# aws_security_group.instance will be created
+ resource "aws_security_group" "instance" {
+ arn = (known after apply)
+ description = "Managed by Terraform"
+ egress = (known after apply)
+ id = (known after apply)
+ ingress = [
+ {
+ cidr_blocks = [
+ "0.0.0.0/0",
]
+ from_port = 80
+ ipv6_cidr_blocks = []
+ prefix_list_ids = []
+ protocol = "tcp"
+ security_groups = []
+ self = false
+ to_port = 80
# (1 unchanged attribute hidden)
},
]
+ name = "terraform-example-instance"
+ name_prefix = (known after apply)
+ owner_id = (known after apply)
+ revoke_rules_on_delete = false
+ tags_all = (known after apply)
+ vpc_id = (known after apply)
}
Plan: 3 to add, 0 to change, 0 to destroy.
──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Note: You didn't use the -out option to save this plan, so Terraform can't guarantee to take exactly these actions if you run "terraform apply" now.
cloud_user@553b1e446c1c:~/asg_elb_terraform$
terraform apply
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
cloud_user@553b1e446c1c:~/asg_elb_terraform$ terraform apply
data.aws_vpc.default: Reading...
data.aws_vpc.default: Read complete after 0s [id=vpc-01dd39250fbbe13c6]
data.aws_subnets.default: Reading...
data.aws_subnets.default: Read complete after 0s [id=us-east-1]
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
+ create
Terraform will perform the following actions:
# aws_autoscaling_group.example will be created
+ resource "aws_autoscaling_group" "example" {
+ arn = (known after apply)
+ availability_zones = (known after apply)
+ default_cooldown = (known after apply)
+ desired_capacity = (known after apply)
+ force_delete = false
+ force_delete_warm_pool = false
+ health_check_grace_period = 300
+ health_check_type = (known after apply)
+ id = (known after apply)
+ ignore_failed_scaling_activities = false
+ launch_configuration = (known after apply)
+ load_balancers = (known after apply)
+ max_size = 10
+ metrics_granularity = "1Minute"
+ min_size = 2
+ name = (known after apply)
+ name_prefix = (known after apply)
+ predicted_capacity = (known after apply)
+ protect_from_scale_in = false
+ service_linked_role_arn = (known after apply)
+ target_group_arns = (known after apply)
+ vpc_zone_identifier = [
+ "subnet-013196de977c33b7d",
+ "subnet-075866766bdfb54d4",
+ "subnet-0c316180bdeb61390",
+ "subnet-0cee7f5995ad6a557",
+ "subnet-0d9ac99195f2661b7",
+ "subnet-0fd7ed03d1c9cc941",
]
+ wait_for_capacity_timeout = "10m"
+ warm_pool_size = (known after apply)
+ launch_template (known after apply)
+ mixed_instances_policy (known after apply)
+ tag {
+ key = "Name"
+ propagate_at_launch = true
+ value = "terraform-asg-example"
}
+ traffic_source (known after apply)
}
# aws_launch_configuration.example will be created
+ resource "aws_launch_configuration" "example" {
+ arn = (known after apply)
+ associate_public_ip_address = (known after apply)
+ ebs_optimized = (known after apply)
+ enable_monitoring = true
+ id = (known after apply)
+ image_id = "ami-04a81a99f5ec58529"
+ instance_type = "t2.micro"
+ key_name = (known after apply)
+ name = (known after apply)
+ name_prefix = (known after apply)
+ security_groups = (known after apply)
+ user_data = "f656cd9de8860addc5a82630adc18c1b3a4883e5"
+ ebs_block_device (known after apply)
+ metadata_options (known after apply)
+ root_block_device (known after apply)
}
# aws_security_group.instance will be created
+ resource "aws_security_group" "instance" {
+ arn = (known after apply)
+ description = "Managed by Terraform"
+ egress = (known after apply)
+ id = (known after apply)
+ ingress = [
+ {
+ cidr_blocks = [
+ "0.0.0.0/0",
]
+ from_port = 80
+ ipv6_cidr_blocks = []
+ prefix_list_ids = []
+ protocol = "tcp"
+ security_groups = []
+ self = false
+ to_port = 80
# (1 unchanged attribute hidden)
},
]
+ name = "terraform-example-instance"
+ name_prefix = (known after apply)
+ owner_id = (known after apply)
+ revoke_rules_on_delete = false
+ tags_all = (known after apply)
+ vpc_id = (known after apply)
}
Plan: 3 to add, 0 to change, 0 to destroy.
Do you want to perform these actions?
Terraform will perform the actions described above.
Only 'yes' will be accepted to approve.
Enter a value: yes
aws_security_group.instance: Creating...
aws_security_group.instance: Creation complete after 2s [id=sg-06154f2fcdb47daf6]
aws_launch_configuration.example: Creating...
aws_launch_configuration.example: Creation complete after 1s [id=terraform-20240724024038018100000001]
aws_autoscaling_group.example: Creating...
aws_autoscaling_group.example: Still creating... [10s elapsed]
aws_autoscaling_group.example: Still creating... [20s elapsed]
aws_autoscaling_group.example: Still creating... [30s elapsed]
aws_autoscaling_group.example: Still creating... [40s elapsed]
aws_autoscaling_group.example: Still creating... [50s elapsed]
aws_autoscaling_group.example: Still creating... [1m0s elapsed]
aws_autoscaling_group.example: Creation complete after 1m6s [id=terraform-20240724024038564900000002]
Apply complete! Resources: 3 added, 0 changed, 0 destroyed.
cloud_user@553b1e446c1c:~/asg_elb_terraform$
terraform destroy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
cloud_user@553b1e446c1c:~/asg_elb_terraform$ terraform destroy
data.aws_vpc.default: Reading...
aws_security_group.instance: Refreshing state... [id=sg-06154f2fcdb47daf6]
aws_launch_configuration.example: Refreshing state... [id=terraform-20240724024038018100000001]
data.aws_vpc.default: Read complete after 1s [id=vpc-01dd39250fbbe13c6]
data.aws_subnets.default: Reading...
data.aws_subnets.default: Read complete after 0s [id=us-east-1]
aws_autoscaling_group.example: Refreshing state... [id=terraform-20240724024038564900000002]
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
- destroy
Terraform will perform the following actions:
# aws_autoscaling_group.example will be destroyed
- resource "aws_autoscaling_group" "example" {
- arn = "arn:aws:autoscaling:us-east-1:XXXXXXXXXXXX:autoScalingGroup:d2761b27-8adf-4db9-8f47-89474ae0bbef:autoScalingGroupName/terraform-20240724024038564900000002" -> null
- availability_zones = [
- "us-east-1a",
- "us-east-1b",
- "us-east-1c",
- "us-east-1d",
- "us-east-1e",
- "us-east-1f",
] -> null
- capacity_rebalance = false -> null
- default_cooldown = 300 -> null
- default_instance_warmup = 0 -> null
- desired_capacity = 2 -> null
- enabled_metrics = [] -> null
- force_delete = false -> null
- force_delete_warm_pool = false -> null
- health_check_grace_period = 300 -> null
- health_check_type = "EC2" -> null
- id = "terraform-20240724024038564900000002" -> null
- ignore_failed_scaling_activities = false -> null
- launch_configuration = "terraform-20240724024038018100000001" -> null
- load_balancers = [] -> null
- max_instance_lifetime = 0 -> null
- max_size = 10 -> null
- metrics_granularity = "1Minute" -> null
- min_size = 2 -> null
- name = "terraform-20240724024038564900000002" -> null
- name_prefix = "terraform-" -> null
- predicted_capacity = 0 -> null
- protect_from_scale_in = false -> null
- service_linked_role_arn = "arn:aws:iam::XXXXXXXXXXXX:role/aws-service-role/autoscaling.amazonaws.com/AWSServiceRoleForAutoScaling" -> null
- suspended_processes = [] -> null
- target_group_arns = [] -> null
- termination_policies = [] -> null
- vpc_zone_identifier = [
- "subnet-013196de977c33b7d",
- "subnet-075866766bdfb54d4",
- "subnet-0c316180bdeb61390",
- "subnet-0cee7f5995ad6a557",
- "subnet-0d9ac99195f2661b7",
- "subnet-0fd7ed03d1c9cc941",
] -> null
- wait_for_capacity_timeout = "10m" -> null
- warm_pool_size = 0 -> null
# (3 unchanged attributes hidden)
- tag {
- key = "Name" -> null
- propagate_at_launch = true -> null
- value = "terraform-asg-example" -> null
}
}
# aws_launch_configuration.example will be destroyed
- resource "aws_launch_configuration" "example" {
- arn = "arn:aws:autoscaling:us-east-1:XXXXXXXXXXXX:launchConfiguration:77ca68c0-b75e-4b9f-9b1f-6c8d9f7a7804:launchConfigurationName/terraform-20240724024038018100000001" -> null
- associate_public_ip_address = false -> null
- ebs_optimized = false -> null
- enable_monitoring = true -> null
- id = "terraform-20240724024038018100000001" -> null
- image_id = "ami-04a81a99f5ec58529" -> null
- instance_type = "t2.micro" -> null
- name = "terraform-20240724024038018100000001" -> null
- name_prefix = "terraform-" -> null
- security_groups = [
- "sg-06154f2fcdb47daf6",
] -> null
- user_data = "f656cd9de8860addc5a82630adc18c1b3a4883e5" -> null
# (4 unchanged attributes hidden)
}
# aws_security_group.instance will be destroyed
- resource "aws_security_group" "instance" {
- arn = "arn:aws:ec2:us-east-1:XXXXXXXXXXXX:security-group/sg-06154f2fcdb47daf6" -> null
- description = "Managed by Terraform" -> null
- egress = [] -> null
- id = "sg-06154f2fcdb47daf6" -> null
- ingress = [
- {
- cidr_blocks = [
- "0.0.0.0/0",
]
- from_port = 80
- ipv6_cidr_blocks = []
- prefix_list_ids = []
- protocol = "tcp"
- security_groups = []
- self = false
- to_port = 80
# (1 unchanged attribute hidden)
},
] -> null
- name = "terraform-example-instance" -> null
- owner_id = "XXXXXXXXXXXX" -> null
- revoke_rules_on_delete = false -> null
- tags = {} -> null
- tags_all = {} -> null
- vpc_id = "vpc-01dd39250fbbe13c6" -> null
# (1 unchanged attribute hidden)
}
Plan: 0 to add, 0 to change, 3 to destroy.
Do you really want to destroy all resources?
Terraform will destroy all your managed infrastructure, as shown above.
There is no undo. Only 'yes' will be accepted to confirm.
Enter a value: yes
aws_autoscaling_group.example: Destroying... [id=terraform-20240724024038564900000002]
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724024038564900000002, 10s elapsed]
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724024038564900000002, 20s elapsed]
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724024038564900000002, 30s elapsed]
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724024038564900000002, 40s elapsed]
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724024038564900000002, 50s elapsed]
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724024038564900000002, 1m0s elapsed]
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724024038564900000002, 1m11s elapsed]
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724024038564900000002, 1m21s elapsed]
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724024038564900000002, 1m31s elapsed]
aws_autoscaling_group.example: Destruction complete after 1m33s
aws_launch_configuration.example: Destroying... [id=terraform-20240724024038018100000001]
aws_launch_configuration.example: Destruction complete after 0s
aws_security_group.instance: Destroying... [id=sg-06154f2fcdb47daf6]
aws_security_group.instance: Destruction complete after 1s
Destroy complete! Resources: 3 destroyed.
cloud_user@553b1e446c1c:~/asg_elb_terraform$
Elastic Load Balancer
We will be using an Application Load Balancer and we will need the following configurations:

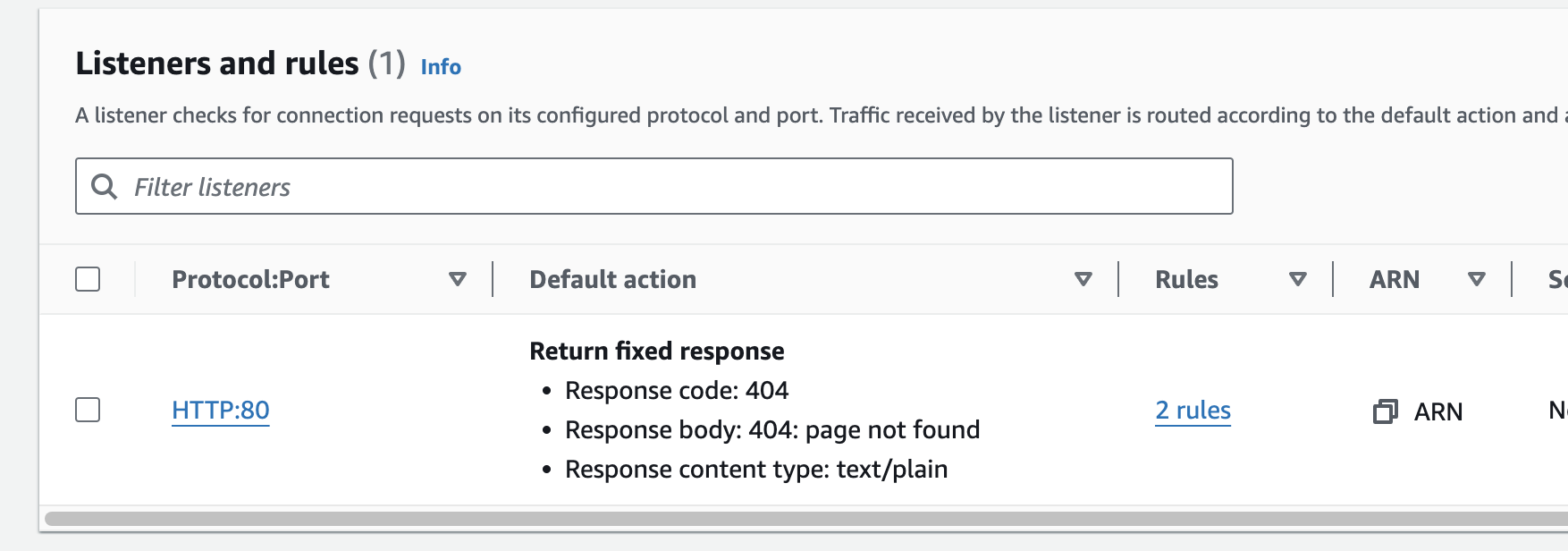

- Listener: Makes the ELB listen on a specific port
- Listener rule: Forwarding based on specific criterias in the URL

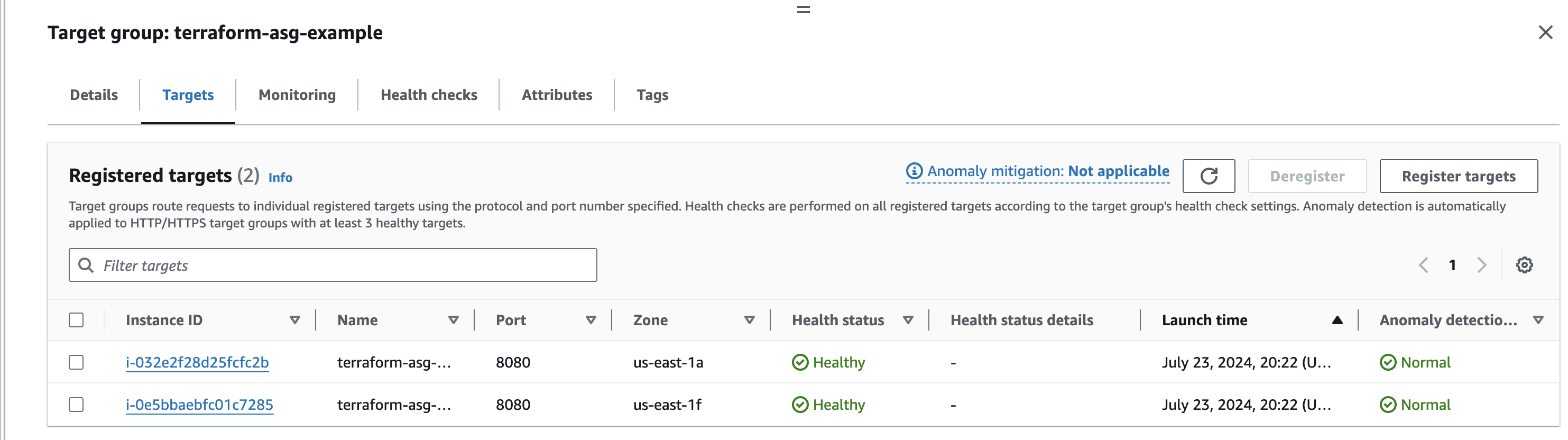

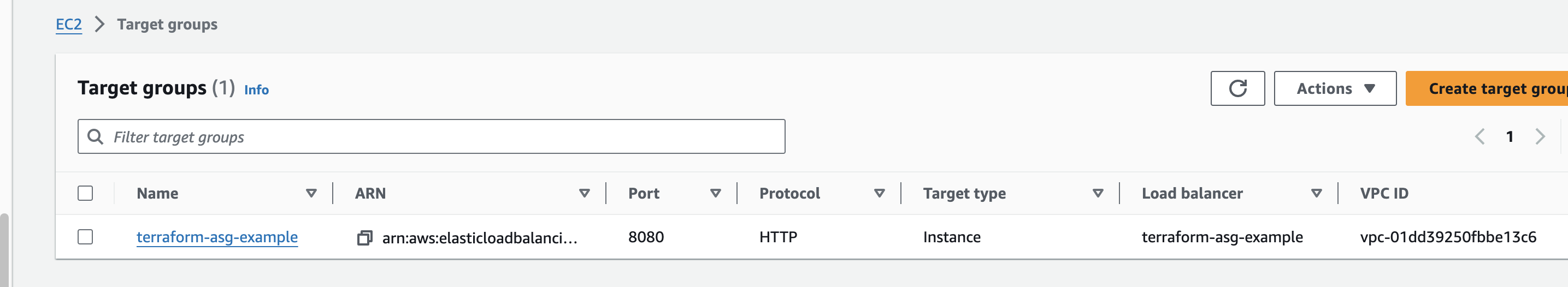

- Target groups: EC2 instances that will be “behind” the ELB

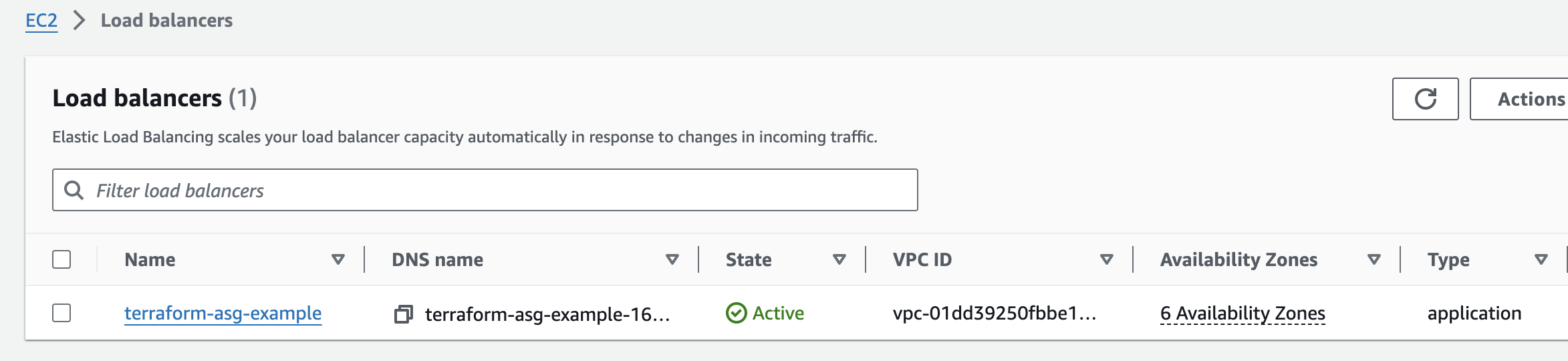

This resource creates the ELB.
We will need a new Security Group attached to the ELB to allow Inbound traffic to it and Outbound traffic from it to monitor the health of the EC2 instances.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
resource "aws_lb" "example" {
name = "terraform-asg-example"
load_balancer_type = "application"
subnets = data.aws_subnets.default.ids
security_groups = [aws_security_group.alb.id]
}
resource "aws_security_group" "alb" {
name = "terraform-example-alb"
# Allow inbound HTTP requests
ingress {
from_port = var.elb_port
to_port = var.elb_port
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
}
# Allow all outbound requests
egress {
from_port = 0
to_port = 0
protocol = "-1"
cidr_blocks = ["0.0.0.0/0"]
}
}
variable "elb_port" {
description = "The port the server will use for HTTP requests"
type = number
default = 80
}
Listener
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
resource "aws_lb_listener" "http" {
load_balancer_arn = aws_lb.example.arn
port = var.elb_port
protocol = "HTTP"
# By default, return a simple 404 page
default_action {
type = "fixed-response"
fixed_response {
content_type = "text/plain"
message_body = "404: page not found"
status_code = 404
}
}
}
Listener rule
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
resource "aws_lb_listener_rule" "asg" {
listener_arn = aws_lb_listener.http.arn
priority = 100
condition {
path_pattern {
values = ["*"]
}
}
action {
type = "forward"
target_group_arn = aws_lb_target_group.asg.arn
}
}
Target Group
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
resource "aws_lb_target_group" "asg" {
name = "terraform-asg-example"
port = var.server_port
protocol = "HTTP"
vpc_id = data.aws_vpc.default.id
health_check {
path = "/"
protocol = "HTTP"
matcher = "200"
interval = 15
timeout = 3
healthy_threshold = 2
unhealthy_threshold = 2
}
}
Uptating Auto Scaling group
For the target group know which EC2 Instances to send requests to, we add these arguments to the aws_autoscaling_group:
target_group_arns- Set ofaws_alb_target_groupARNs, for use with Application or Network Load Balancing.health_check_type- “EC2” or “ELB”. Controls how health checking is done.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
resource "aws_autoscaling_group" "example" {
launch_configuration = aws_launch_configuration.example.name
vpc_zone_identifier = data.aws_subnets.default.ids
target_group_arns = [aws_lb_target_group.asg.arn]
health_check_type = "ELB"
min_size = 2
max_size = 10
tag {
key = "Name"
value = "terraform-asg-example"
propagate_at_launch = true
}
}
Output variable to obtain the URL to the ELB
1
2
3
4
output "alb_dns_name" {
value = aws_lb.example.dns_name
description = "The domain name of the load balancer"
}
Complete Terraform file
main.tf
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
provider "aws" {
region = "us-east-1"
}
resource "aws_launch_configuration" "example" {
image_id = "ami-04a81a99f5ec58529"
instance_type = "t2.micro"
security_groups = [aws_security_group.instance.id]
user_data = <<-EOF
#!/bin/bash
echo "Hello, World" > index.html
nohup busybox httpd -f -p ${var.server_port} &
EOF
# Required when using a launch configuration with an auto scaling group.
lifecycle {
create_before_destroy = true
}
}
resource "aws_security_group" "instance" {
name = "terraform-example-instance"
ingress {
from_port = var.server_port
to_port = var.server_port
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
}
}
variable "server_port" {
description = "The port the server will use for HTTP requests"
type = number
default = 8080
}
resource "aws_autoscaling_group" "example" {
launch_configuration = aws_launch_configuration.example.name
vpc_zone_identifier = data.aws_subnets.default.ids
target_group_arns = [aws_lb_target_group.asg.arn]
health_check_type = "ELB"
min_size = 2
max_size = 10
tag {
key = "Name"
value = "terraform-asg-example"
propagate_at_launch = true
}
}
data "aws_vpc" "default" {
default = true
}
data "aws_subnets" "default" {
filter {
name = "vpc-id"
values = [data.aws_vpc.default.id]
}
}
resource "aws_lb" "example" {
name = "terraform-asg-example"
load_balancer_type = "application"
subnets = data.aws_subnets.default.ids
security_groups = [aws_security_group.alb.id]
}
resource "aws_security_group" "alb" {
name = "terraform-example-alb"
# Allow inbound HTTP requests
ingress {
from_port = var.elb_port
to_port = var.elb_port
protocol = "tcp"
cidr_blocks = ["0.0.0.0/0"]
}
# Allow all outbound requests
egress {
from_port = 0
to_port = 0
protocol = "-1"
cidr_blocks = ["0.0.0.0/0"]
}
}
variable "elb_port" {
description = "The port the server will use for HTTP requests"
type = number
default = 80
}
resource "aws_lb_listener" "http" {
load_balancer_arn = aws_lb.example.arn
port = var.elb_port
protocol = "HTTP"
# By default, return a simple 404 page
default_action {
type = "fixed-response"
fixed_response {
content_type = "text/plain"
message_body = "404: page not found"
status_code = 404
}
}
}
resource "aws_lb_listener_rule" "asg" {
listener_arn = aws_lb_listener.http.arn
priority = 100
condition {
path_pattern {
values = ["*"]
}
}
action {
type = "forward"
target_group_arn = aws_lb_target_group.asg.arn
}
}
resource "aws_lb_target_group" "asg" {
name = "terraform-asg-example"
port = var.server_port
protocol = "HTTP"
vpc_id = data.aws_vpc.default.id
health_check {
path = "/"
protocol = "HTTP"
matcher = "200"
interval = 15
timeout = 3
healthy_threshold = 2
unhealthy_threshold = 2
}
}
output "alb_dns_name" {
value = aws_lb.example.dns_name
description = "The domain name of the load balancer"
}
terraform plan
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
cloud_user@553b1e446c1c:~/asg_elb_terraform$ terraform plan
data.aws_vpc.default: Reading...
data.aws_vpc.default: Read complete after 0s [id=vpc-01dd39250fbbe13c6]
data.aws_subnets.default: Reading...
data.aws_subnets.default: Read complete after 1s [id=us-east-1]
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
+ create
Terraform will perform the following actions:
# aws_autoscaling_group.example will be created
+ resource "aws_autoscaling_group" "example" {
+ arn = (known after apply)
+ availability_zones = (known after apply)
+ default_cooldown = (known after apply)
+ desired_capacity = (known after apply)
+ force_delete = false
+ force_delete_warm_pool = false
+ health_check_grace_period = 300
+ health_check_type = "ELB"
+ id = (known after apply)
+ ignore_failed_scaling_activities = false
+ launch_configuration = (known after apply)
+ load_balancers = (known after apply)
+ max_size = 10
+ metrics_granularity = "1Minute"
+ min_size = 2
+ name = (known after apply)
+ name_prefix = (known after apply)
+ predicted_capacity = (known after apply)
+ protect_from_scale_in = false
+ service_linked_role_arn = (known after apply)
+ target_group_arns = (known after apply)
+ vpc_zone_identifier = [
+ "subnet-013196de977c33b7d",
+ "subnet-075866766bdfb54d4",
+ "subnet-0c316180bdeb61390",
+ "subnet-0cee7f5995ad6a557",
+ "subnet-0d9ac99195f2661b7",
+ "subnet-0fd7ed03d1c9cc941",
]
+ wait_for_capacity_timeout = "10m"
+ warm_pool_size = (known after apply)
+ launch_template (known after apply)
+ mixed_instances_policy (known after apply)
+ tag {
+ key = "Name"
+ propagate_at_launch = true
+ value = "terraform-asg-example"
}
+ traffic_source (known after apply)
}
# aws_launch_configuration.example will be created
+ resource "aws_launch_configuration" "example" {
+ arn = (known after apply)
+ associate_public_ip_address = (known after apply)
+ ebs_optimized = (known after apply)
+ enable_monitoring = true
+ id = (known after apply)
+ image_id = "ami-04a81a99f5ec58529"
+ instance_type = "t2.micro"
+ key_name = (known after apply)
+ name = (known after apply)
+ name_prefix = (known after apply)
+ security_groups = (known after apply)
+ user_data = "c765373c563b260626d113c4a56a46e8a8c5ca33"
+ ebs_block_device (known after apply)
+ metadata_options (known after apply)
+ root_block_device (known after apply)
}
# aws_lb.example will be created
+ resource "aws_lb" "example" {
+ arn = (known after apply)
+ arn_suffix = (known after apply)
+ client_keep_alive = 3600
+ desync_mitigation_mode = "defensive"
+ dns_name = (known after apply)
+ drop_invalid_header_fields = false
+ enable_deletion_protection = false
+ enable_http2 = true
+ enable_tls_version_and_cipher_suite_headers = false
+ enable_waf_fail_open = false
+ enable_xff_client_port = false
+ enforce_security_group_inbound_rules_on_private_link_traffic = (known after apply)
+ id = (known after apply)
+ idle_timeout = 60
+ internal = (known after apply)
+ ip_address_type = (known after apply)
+ load_balancer_type = "application"
+ name = "terraform-asg-example"
+ name_prefix = (known after apply)
+ preserve_host_header = false
+ security_groups = (known after apply)
+ subnets = [
+ "subnet-013196de977c33b7d",
+ "subnet-075866766bdfb54d4",
+ "subnet-0c316180bdeb61390",
+ "subnet-0cee7f5995ad6a557",
+ "subnet-0d9ac99195f2661b7",
+ "subnet-0fd7ed03d1c9cc941",
]
+ tags_all = (known after apply)
+ vpc_id = (known after apply)
+ xff_header_processing_mode = "append"
+ zone_id = (known after apply)
+ subnet_mapping (known after apply)
}
# aws_lb_listener.http will be created
+ resource "aws_lb_listener" "http" {
+ arn = (known after apply)
+ id = (known after apply)
+ load_balancer_arn = (known after apply)
+ port = 80
+ protocol = "HTTP"
+ ssl_policy = (known after apply)
+ tags_all = (known after apply)
+ default_action {
+ order = (known after apply)
+ type = "fixed-response"
+ fixed_response {
+ content_type = "text/plain"
+ message_body = "404: page not found"
+ status_code = "404"
}
}
+ mutual_authentication (known after apply)
}
# aws_lb_listener_rule.asg will be created
+ resource "aws_lb_listener_rule" "asg" {
+ arn = (known after apply)
+ id = (known after apply)
+ listener_arn = (known after apply)
+ priority = 100
+ tags_all = (known after apply)
+ action {
+ order = (known after apply)
+ target_group_arn = (known after apply)
+ type = "forward"
}
+ condition {
+ path_pattern {
+ values = [
+ "*",
]
}
}
}
# aws_lb_target_group.asg will be created
+ resource "aws_lb_target_group" "asg" {
+ arn = (known after apply)
+ arn_suffix = (known after apply)
+ connection_termination = (known after apply)
+ deregistration_delay = "300"
+ id = (known after apply)
+ ip_address_type = (known after apply)
+ lambda_multi_value_headers_enabled = false
+ load_balancer_arns = (known after apply)
+ load_balancing_algorithm_type = (known after apply)
+ load_balancing_anomaly_mitigation = (known after apply)
+ load_balancing_cross_zone_enabled = (known after apply)
+ name = "terraform-asg-example"
+ name_prefix = (known after apply)
+ port = 8080
+ preserve_client_ip = (known after apply)
+ protocol = "HTTP"
+ protocol_version = (known after apply)
+ proxy_protocol_v2 = false
+ slow_start = 0
+ tags_all = (known after apply)
+ target_type = "instance"
+ vpc_id = "vpc-01dd39250fbbe13c6"
+ health_check {
+ enabled = true
+ healthy_threshold = 2
+ interval = 15
+ matcher = "200"
+ path = "/"
+ port = "traffic-port"
+ protocol = "HTTP"
+ timeout = 3
+ unhealthy_threshold = 2
}
+ stickiness (known after apply)
+ target_failover (known after apply)
+ target_group_health (known after apply)
+ target_health_state (known after apply)
}
# aws_security_group.alb will be created
+ resource "aws_security_group" "alb" {
+ arn = (known after apply)
+ description = "Managed by Terraform"
+ egress = [
+ {
+ cidr_blocks = [
+ "0.0.0.0/0",
]
+ from_port = 0
+ ipv6_cidr_blocks = []
+ prefix_list_ids = []
+ protocol = "-1"
+ security_groups = []
+ self = false
+ to_port = 0
# (1 unchanged attribute hidden)
},
]
+ id = (known after apply)
+ ingress = [
+ {
+ cidr_blocks = [
+ "0.0.0.0/0",
]
+ from_port = 80
+ ipv6_cidr_blocks = []
+ prefix_list_ids = []
+ protocol = "tcp"
+ security_groups = []
+ self = false
+ to_port = 80
# (1 unchanged attribute hidden)
},
]
+ name = "terraform-example-alb"
+ name_prefix = (known after apply)
+ owner_id = (known after apply)
+ revoke_rules_on_delete = false
+ tags_all = (known after apply)
+ vpc_id = (known after apply)
}
# aws_security_group.instance will be created
+ resource "aws_security_group" "instance" {
+ arn = (known after apply)
+ description = "Managed by Terraform"
+ egress = (known after apply)
+ id = (known after apply)
+ ingress = [
+ {
+ cidr_blocks = [
+ "0.0.0.0/0",
]
+ from_port = 8080
+ ipv6_cidr_blocks = []
+ prefix_list_ids = []
+ protocol = "tcp"
+ security_groups = []
+ self = false
+ to_port = 8080
# (1 unchanged attribute hidden)
},
]
+ name = "terraform-example-instance"
+ name_prefix = (known after apply)
+ owner_id = (known after apply)
+ revoke_rules_on_delete = false
+ tags_all = (known after apply)
+ vpc_id = (known after apply)
}
Plan: 8 to add, 0 to change, 0 to destroy.
──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Note: You didn't use the -out option to save this plan, so Terraform can't guarantee to take exactly these actions if you run "terraform apply" now.
cloud_user@553b1e446c1c:~/asg_elb_terraform$
terraform apply
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
cloud_user@553b1e446c1c:~/asg_elb_terraform$ terraform apply
data.aws_vpc.default: Reading...
data.aws_vpc.default: Read complete after 1s [id=vpc-01dd39250fbbe13c6]
data.aws_subnets.default: Reading...
data.aws_subnets.default: Read complete after 0s [id=us-east-1]
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
+ create
Terraform will perform the following actions:
# aws_autoscaling_group.example will be created
+ resource "aws_autoscaling_group" "example" {
+ arn = (known after apply)
+ availability_zones = (known after apply)
+ default_cooldown = (known after apply)
+ desired_capacity = (known after apply)
+ force_delete = false
+ force_delete_warm_pool = false
+ health_check_grace_period = 300
+ health_check_type = "ELB"
+ id = (known after apply)
+ ignore_failed_scaling_activities = false
+ launch_configuration = (known after apply)
+ load_balancers = (known after apply)
+ max_size = 10
+ metrics_granularity = "1Minute"
+ min_size = 2
+ name = (known after apply)
+ name_prefix = (known after apply)
+ predicted_capacity = (known after apply)
+ protect_from_scale_in = false
+ service_linked_role_arn = (known after apply)
+ target_group_arns = (known after apply)
+ vpc_zone_identifier = [
+ "subnet-013196de977c33b7d",
+ "subnet-075866766bdfb54d4",
+ "subnet-0c316180bdeb61390",
+ "subnet-0cee7f5995ad6a557",
+ "subnet-0d9ac99195f2661b7",
+ "subnet-0fd7ed03d1c9cc941",
]
+ wait_for_capacity_timeout = "10m"
+ warm_pool_size = (known after apply)
+ launch_template (known after apply)
+ mixed_instances_policy (known after apply)
+ tag {
+ key = "Name"
+ propagate_at_launch = true
+ value = "terraform-asg-example"
}
+ traffic_source (known after apply)
}
# aws_launch_configuration.example will be created
+ resource "aws_launch_configuration" "example" {
+ arn = (known after apply)
+ associate_public_ip_address = (known after apply)
+ ebs_optimized = (known after apply)
+ enable_monitoring = true
+ id = (known after apply)
+ image_id = "ami-04a81a99f5ec58529"
+ instance_type = "t2.micro"
+ key_name = (known after apply)
+ name = (known after apply)
+ name_prefix = (known after apply)
+ security_groups = (known after apply)
+ user_data = "c765373c563b260626d113c4a56a46e8a8c5ca33"
+ ebs_block_device (known after apply)
+ metadata_options (known after apply)
+ root_block_device (known after apply)
}
# aws_lb.example will be created
+ resource "aws_lb" "example" {
+ arn = (known after apply)
+ arn_suffix = (known after apply)
+ client_keep_alive = 3600
+ desync_mitigation_mode = "defensive"
+ dns_name = (known after apply)
+ drop_invalid_header_fields = false
+ enable_deletion_protection = false
+ enable_http2 = true
+ enable_tls_version_and_cipher_suite_headers = false
+ enable_waf_fail_open = false
+ enable_xff_client_port = false
+ enforce_security_group_inbound_rules_on_private_link_traffic = (known after apply)
+ id = (known after apply)
+ idle_timeout = 60
+ internal = (known after apply)
+ ip_address_type = (known after apply)
+ load_balancer_type = "application"
+ name = "terraform-asg-example"
+ name_prefix = (known after apply)
+ preserve_host_header = false
+ security_groups = (known after apply)
+ subnets = [
+ "subnet-013196de977c33b7d",
+ "subnet-075866766bdfb54d4",
+ "subnet-0c316180bdeb61390",
+ "subnet-0cee7f5995ad6a557",
+ "subnet-0d9ac99195f2661b7",
+ "subnet-0fd7ed03d1c9cc941",
]
+ tags_all = (known after apply)
+ vpc_id = (known after apply)
+ xff_header_processing_mode = "append"
+ zone_id = (known after apply)
+ subnet_mapping (known after apply)
}
# aws_lb_listener.http will be created
+ resource "aws_lb_listener" "http" {
+ arn = (known after apply)
+ id = (known after apply)
+ load_balancer_arn = (known after apply)
+ port = 80
+ protocol = "HTTP"
+ ssl_policy = (known after apply)
+ tags_all = (known after apply)
+ default_action {
+ order = (known after apply)
+ type = "fixed-response"
+ fixed_response {
+ content_type = "text/plain"
+ message_body = "404: page not found"
+ status_code = "404"
}
}
+ mutual_authentication (known after apply)
}
# aws_lb_listener_rule.asg will be created
+ resource "aws_lb_listener_rule" "asg" {
+ arn = (known after apply)
+ id = (known after apply)
+ listener_arn = (known after apply)
+ priority = 100
+ tags_all = (known after apply)
+ action {
+ order = (known after apply)
+ target_group_arn = (known after apply)
+ type = "forward"
}
+ condition {
+ path_pattern {
+ values = [
+ "*",
]
}
}
}
# aws_lb_target_group.asg will be created
+ resource "aws_lb_target_group" "asg" {
+ arn = (known after apply)
+ arn_suffix = (known after apply)
+ connection_termination = (known after apply)
+ deregistration_delay = "300"
+ id = (known after apply)
+ ip_address_type = (known after apply)
+ lambda_multi_value_headers_enabled = false
+ load_balancer_arns = (known after apply)
+ load_balancing_algorithm_type = (known after apply)
+ load_balancing_anomaly_mitigation = (known after apply)
+ load_balancing_cross_zone_enabled = (known after apply)
+ name = "terraform-asg-example"
+ name_prefix = (known after apply)
+ port = 8080
+ preserve_client_ip = (known after apply)
+ protocol = "HTTP"
+ protocol_version = (known after apply)
+ proxy_protocol_v2 = false
+ slow_start = 0
+ tags_all = (known after apply)
+ target_type = "instance"
+ vpc_id = "vpc-01dd39250fbbe13c6"
+ health_check {
+ enabled = true
+ healthy_threshold = 2
+ interval = 15
+ matcher = "200"
+ path = "/"
+ port = "traffic-port"
+ protocol = "HTTP"
+ timeout = 3
+ unhealthy_threshold = 2
}
+ stickiness (known after apply)
+ target_failover (known after apply)
+ target_group_health (known after apply)
+ target_health_state (known after apply)
}
# aws_security_group.alb will be created
+ resource "aws_security_group" "alb" {
+ arn = (known after apply)
+ description = "Managed by Terraform"
+ egress = [
+ {
+ cidr_blocks = [
+ "0.0.0.0/0",
]
+ from_port = 0
+ ipv6_cidr_blocks = []
+ prefix_list_ids = []
+ protocol = "-1"
+ security_groups = []
+ self = false
+ to_port = 0
# (1 unchanged attribute hidden)
},
]
+ id = (known after apply)
+ ingress = [
+ {
+ cidr_blocks = [
+ "0.0.0.0/0",
]
+ from_port = 80
+ ipv6_cidr_blocks = []
+ prefix_list_ids = []
+ protocol = "tcp"
+ security_groups = []
+ self = false
+ to_port = 80
# (1 unchanged attribute hidden)
},
]
+ name = "terraform-example-alb"
+ name_prefix = (known after apply)
+ owner_id = (known after apply)
+ revoke_rules_on_delete = false
+ tags_all = (known after apply)
+ vpc_id = (known after apply)
}
# aws_security_group.instance will be created
+ resource "aws_security_group" "instance" {
+ arn = (known after apply)
+ description = "Managed by Terraform"
+ egress = (known after apply)
+ id = (known after apply)
+ ingress = [
+ {
+ cidr_blocks = [
+ "0.0.0.0/0",
]
+ from_port = 8080
+ ipv6_cidr_blocks = []
+ prefix_list_ids = []
+ protocol = "tcp"
+ security_groups = []
+ self = false
+ to_port = 8080
# (1 unchanged attribute hidden)
},
]
+ name = "terraform-example-instance"
+ name_prefix = (known after apply)
+ owner_id = (known after apply)
+ revoke_rules_on_delete = false
+ tags_all = (known after apply)
+ vpc_id = (known after apply)
}
Plan: 8 to add, 0 to change, 0 to destroy.
Do you want to perform these actions?
Terraform will perform the actions described above.
Only 'yes' will be accepted to approve.
Enter a value: yes
aws_lb_target_group.asg: Creating...
aws_security_group.instance: Creating...
aws_security_group.alb: Creating...
aws_lb_target_group.asg: Creation complete after 0s [id=arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:targetgroup/terraform-asg-example/f7291f3c616cee2c]
aws_security_group.instance: Creation complete after 2s [id=sg-0ebaa3fd8741f2114]
aws_launch_configuration.example: Creating...
aws_security_group.alb: Creation complete after 2s [id=sg-0e7699ba72233ec10]
aws_lb.example: Creating...
aws_launch_configuration.example: Creation complete after 0s [id=terraform-20240724032221829400000001]
aws_autoscaling_group.example: Creating...
aws_lb.example: Still creating... [10s elapsed]
aws_autoscaling_group.example: Still creating... [10s elapsed]
aws_lb.example: Still creating... [20s elapsed]
aws_autoscaling_group.example: Still creating... [20s elapsed]
aws_lb.example: Still creating... [30s elapsed]
aws_autoscaling_group.example: Still creating... [30s elapsed]
aws_lb.example: Still creating... [40s elapsed]
aws_autoscaling_group.example: Still creating... [40s elapsed]
aws_autoscaling_group.example: Creation complete after 46s [id=terraform-20240724032222449100000002]
aws_lb.example: Still creating... [50s elapsed]
aws_lb.example: Still creating... [1m0s elapsed]
aws_lb.example: Still creating... [1m10s elapsed]
aws_lb.example: Still creating... [1m20s elapsed]
aws_lb.example: Still creating... [1m30s elapsed]
aws_lb.example: Still creating... [1m40s elapsed]
aws_lb.example: Still creating... [1m50s elapsed]
aws_lb.example: Still creating... [2m0s elapsed]
aws_lb.example: Still creating... [2m10s elapsed]
aws_lb.example: Still creating... [2m20s elapsed]
aws_lb.example: Still creating... [2m30s elapsed]
aws_lb.example: Still creating... [2m40s elapsed]
aws_lb.example: Still creating... [2m50s elapsed]
aws_lb.example: Still creating... [3m0s elapsed]
aws_lb.example: Still creating... [3m10s elapsed]
aws_lb.example: Creation complete after 3m12s [id=arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:loadbalancer/app/terraform-asg-example/e8f8ce77a4f9d74c]
aws_lb_listener.http: Creating...
aws_lb_listener.http: Creation complete after 1s [id=arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:listener/app/terraform-asg-example/e8f8ce77a4f9d74c/ab66348839329aee]
aws_lb_listener_rule.asg: Creating...
aws_lb_listener_rule.asg: Creation complete after 0s [id=arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:listener-rule/app/terraform-asg-example/e8f8ce77a4f9d74c/ab66348839329aee/36b4f1e473ed77ee]
Apply complete! Resources: 8 added, 0 changed, 0 destroyed.
cloud_user@553b1e446c1c:~/asg_elb_terraform$
1
2
3
cloud_user@553b1e446c1c:~/asg_elb_terraform$ terraform output
alb_dns_name = "terraform-asg-example-XXXXXXXXXX.us-east-1.elb.amazonaws.com"
cloud_user@553b1e446c1c:~/asg_elb_terraform$
Verification
1
2
3
$ curl terraform-asg-example-XXXXXXXXXX.us-east-1.elb.amazonaws.com
Hello, World
$
EC2 instances created
Security Groups
Elastic Load Balancer
Target Groups
Listeners
Auto Scaling groups
Launch configuration
Removing the infrastructure
1
terraform destroy
terrafom destroy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
cloud_user@553b1e446c1c:~/asg_elb_terraform$ terraform destroy
aws_security_group.instance: Refreshing state... [id=sg-0ebaa3fd8741f2114]
aws_security_group.alb: Refreshing state... [id=sg-0e7699ba72233ec10]
data.aws_vpc.default: Reading...
aws_launch_configuration.example: Refreshing state... [id=terraform-20240724032221829400000001]
data.aws_vpc.default: Read complete after 0s [id=vpc-01dd39250fbbe13c6]
data.aws_subnets.default: Reading...
aws_lb_target_group.asg: Refreshing state... [id=arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:targetgroup/terraform-asg-example/f7291f3c616cee2c]
data.aws_subnets.default: Read complete after 0s [id=us-east-1]
aws_lb.example: Refreshing state... [id=arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:loadbalancer/app/terraform-asg-example/e8f8ce77a4f9d74c]
aws_autoscaling_group.example: Refreshing state... [id=terraform-20240724032222449100000002]
aws_lb_listener.http: Refreshing state... [id=arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:listener/app/terraform-asg-example/e8f8ce77a4f9d74c/ab66348839329aee]
aws_lb_listener_rule.asg: Refreshing state... [id=arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:listener-rule/app/terraform-asg-example/e8f8ce77a4f9d74c/ab66348839329aee/36b4f1e473ed77ee]
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
- destroy
Terraform will perform the following actions:
# aws_autoscaling_group.example will be destroyed
- resource "aws_autoscaling_group" "example" {
- arn = "arn:aws:autoscaling:us-east-1:XXXXXXXXXXXX:autoScalingGroup:7b82e885-eb1a-4c85-862f-72df516c1f2e:autoScalingGroupName/terraform-20240724032222449100000002" -> null
- availability_zones = [
- "us-east-1a",
- "us-east-1b",
- "us-east-1c",
- "us-east-1d",
- "us-east-1e",
- "us-east-1f",
] -> null
- capacity_rebalance = false -> null
- default_cooldown = 300 -> null
- default_instance_warmup = 0 -> null
- desired_capacity = 2 -> null
- enabled_metrics = [] -> null
- force_delete = false -> null
- force_delete_warm_pool = false -> null
- health_check_grace_period = 300 -> null
- health_check_type = "ELB" -> null
- id = "terraform-20240724032222449100000002" -> null
- ignore_failed_scaling_activities = false -> null
- launch_configuration = "terraform-20240724032221829400000001" -> null
- load_balancers = [] -> null
- max_instance_lifetime = 0 -> null
- max_size = 10 -> null
- metrics_granularity = "1Minute" -> null
- min_size = 2 -> null
- name = "terraform-20240724032222449100000002" -> null
- name_prefix = "terraform-" -> null
- predicted_capacity = 0 -> null
- protect_from_scale_in = false -> null
- service_linked_role_arn = "arn:aws:iam::XXXXXXXXXXXX:role/aws-service-role/autoscaling.amazonaws.com/AWSServiceRoleForAutoScaling" -> null
- suspended_processes = [] -> null
- target_group_arns = [
- "arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:targetgroup/terraform-asg-example/f7291f3c616cee2c",
] -> null
- termination_policies = [] -> null
- vpc_zone_identifier = [
- "subnet-013196de977c33b7d",
- "subnet-075866766bdfb54d4",
- "subnet-0c316180bdeb61390",
- "subnet-0cee7f5995ad6a557",
- "subnet-0d9ac99195f2661b7",
- "subnet-0fd7ed03d1c9cc941",
] -> null
- wait_for_capacity_timeout = "10m" -> null
- warm_pool_size = 0 -> null
# (3 unchanged attributes hidden)
- tag {
- key = "Name" -> null
- propagate_at_launch = true -> null
- value = "terraform-asg-example" -> null
}
- traffic_source {
- identifier = "arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:targetgroup/terraform-asg-example/f7291f3c616cee2c" -> null
- type = "elbv2" -> null
}
}
# aws_launch_configuration.example will be destroyed
- resource "aws_launch_configuration" "example" {
- arn = "arn:aws:autoscaling:us-east-1:XXXXXXXXXXXX:launchConfiguration:89effdc0-5c09-4858-b413-d4e8aa637cc7:launchConfigurationName/terraform-20240724032221829400000001" -> null
- associate_public_ip_address = false -> null
- ebs_optimized = false -> null
- enable_monitoring = true -> null
- id = "terraform-20240724032221829400000001" -> null
- image_id = "ami-04a81a99f5ec58529" -> null
- instance_type = "t2.micro" -> null
- name = "terraform-20240724032221829400000001" -> null
- name_prefix = "terraform-" -> null
- security_groups = [
- "sg-0ebaa3fd8741f2114",
] -> null
- user_data = "c765373c563b260626d113c4a56a46e8a8c5ca33" -> null
# (4 unchanged attributes hidden)
}
# aws_lb.example will be destroyed
- resource "aws_lb" "example" {
- arn = "arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:loadbalancer/app/terraform-asg-example/e8f8ce77a4f9d74c" -> null
- arn_suffix = "app/terraform-asg-example/e8f8ce77a4f9d74c" -> null
- client_keep_alive = 3600 -> null
- desync_mitigation_mode = "defensive" -> null
- dns_name = "terraform-asg-example-1620849536.us-east-1.elb.amazonaws.com" -> null
- drop_invalid_header_fields = false -> null
- enable_cross_zone_load_balancing = true -> null
- enable_deletion_protection = false -> null
- enable_http2 = true -> null
- enable_tls_version_and_cipher_suite_headers = false -> null
- enable_waf_fail_open = false -> null
- enable_xff_client_port = false -> null
- id = "arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:loadbalancer/app/terraform-asg-example/e8f8ce77a4f9d74c" -> null
- idle_timeout = 60 -> null
- internal = false -> null
- ip_address_type = "ipv4" -> null
- load_balancer_type = "application" -> null
- name = "terraform-asg-example" -> null
- preserve_host_header = false -> null
- security_groups = [
- "sg-0e7699ba72233ec10",
] -> null
- subnets = [
- "subnet-013196de977c33b7d",
- "subnet-075866766bdfb54d4",
- "subnet-0c316180bdeb61390",
- "subnet-0cee7f5995ad6a557",
- "subnet-0d9ac99195f2661b7",
- "subnet-0fd7ed03d1c9cc941",
] -> null
- tags = {} -> null
- tags_all = {} -> null
- vpc_id = "vpc-01dd39250fbbe13c6" -> null
- xff_header_processing_mode = "append" -> null
- zone_id = "Z35SXDOTRQ7X7K" -> null
# (3 unchanged attributes hidden)
- access_logs {
- enabled = false -> null
# (2 unchanged attributes hidden)
}
- connection_logs {
- enabled = false -> null
# (2 unchanged attributes hidden)
}
- subnet_mapping {
- subnet_id = "subnet-013196de977c33b7d" -> null
# (4 unchanged attributes hidden)
}
- subnet_mapping {
- subnet_id = "subnet-075866766bdfb54d4" -> null
# (4 unchanged attributes hidden)
}
- subnet_mapping {
- subnet_id = "subnet-0c316180bdeb61390" -> null
# (4 unchanged attributes hidden)
}
- subnet_mapping {
- subnet_id = "subnet-0cee7f5995ad6a557" -> null
# (4 unchanged attributes hidden)
}
- subnet_mapping {
- subnet_id = "subnet-0d9ac99195f2661b7" -> null
# (4 unchanged attributes hidden)
}
- subnet_mapping {
- subnet_id = "subnet-0fd7ed03d1c9cc941" -> null
# (4 unchanged attributes hidden)
}
}
# aws_lb_listener.http will be destroyed
- resource "aws_lb_listener" "http" {
- arn = "arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:listener/app/terraform-asg-example/e8f8ce77a4f9d74c/ab66348839329aee" -> null
- id = "arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:listener/app/terraform-asg-example/e8f8ce77a4f9d74c/ab66348839329aee" -> null
- load_balancer_arn = "arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:loadbalancer/app/terraform-asg-example/e8f8ce77a4f9d74c" -> null
- port = 80 -> null
- protocol = "HTTP" -> null
- tags = {} -> null
- tags_all = {} -> null
# (1 unchanged attribute hidden)
- default_action {
- order = 1 -> null
- type = "fixed-response" -> null
# (1 unchanged attribute hidden)
- fixed_response {
- content_type = "text/plain" -> null
- message_body = "404: page not found" -> null
- status_code = "404" -> null
}
}
}
# aws_lb_listener_rule.asg will be destroyed
- resource "aws_lb_listener_rule" "asg" {
- arn = "arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:listener-rule/app/terraform-asg-example/e8f8ce77a4f9d74c/ab66348839329aee/36b4f1e473ed77ee" -> null
- id = "arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:listener-rule/app/terraform-asg-example/e8f8ce77a4f9d74c/ab66348839329aee/36b4f1e473ed77ee" -> null
- listener_arn = "arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:listener/app/terraform-asg-example/e8f8ce77a4f9d74c/ab66348839329aee" -> null
- priority = 100 -> null
- tags = {} -> null
- tags_all = {} -> null
- action {
- order = 1 -> null
- target_group_arn = "arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:targetgroup/terraform-asg-example/f7291f3c616cee2c" -> null
- type = "forward" -> null
}
- condition {
- path_pattern {
- values = [
- "*",
] -> null
}
}
}
# aws_lb_target_group.asg will be destroyed
- resource "aws_lb_target_group" "asg" {
- arn = "arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:targetgroup/terraform-asg-example/f7291f3c616cee2c" -> null
- arn_suffix = "targetgroup/terraform-asg-example/f7291f3c616cee2c" -> null
- deregistration_delay = "300" -> null
- id = "arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:targetgroup/terraform-asg-example/f7291f3c616cee2c" -> null
- ip_address_type = "ipv4" -> null
- lambda_multi_value_headers_enabled = false -> null
- load_balancer_arns = [
- "arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:loadbalancer/app/terraform-asg-example/e8f8ce77a4f9d74c",
] -> null
- load_balancing_algorithm_type = "round_robin" -> null
- load_balancing_anomaly_mitigation = "off" -> null
- load_balancing_cross_zone_enabled = "use_load_balancer_configuration" -> null
- name = "terraform-asg-example" -> null
- port = 8080 -> null
- protocol = "HTTP" -> null
- protocol_version = "HTTP1" -> null
- proxy_protocol_v2 = false -> null
- slow_start = 0 -> null
- tags = {} -> null
- tags_all = {} -> null
- target_type = "instance" -> null
- vpc_id = "vpc-01dd39250fbbe13c6" -> null
# (1 unchanged attribute hidden)
- health_check {
- enabled = true -> null
- healthy_threshold = 2 -> null
- interval = 15 -> null
- matcher = "200" -> null
- path = "/" -> null
- port = "traffic-port" -> null
- protocol = "HTTP" -> null
- timeout = 3 -> null
- unhealthy_threshold = 2 -> null
}
- stickiness {
- cookie_duration = 86400 -> null
- enabled = false -> null
- type = "lb_cookie" -> null
# (1 unchanged attribute hidden)
}
- target_failover {}
- target_group_health {
- dns_failover {
- minimum_healthy_targets_count = "1" -> null
- minimum_healthy_targets_percentage = "off" -> null
}
- unhealthy_state_routing {
- minimum_healthy_targets_count = 1 -> null
- minimum_healthy_targets_percentage = "off" -> null
}
}
- target_health_state {}
}
# aws_security_group.alb will be destroyed
- resource "aws_security_group" "alb" {
- arn = "arn:aws:ec2:us-east-1:XXXXXXXXXXXX:security-group/sg-0e7699ba72233ec10" -> null
- description = "Managed by Terraform" -> null
- egress = [
- {
- cidr_blocks = [
- "0.0.0.0/0",
]
- from_port = 0
- ipv6_cidr_blocks = []
- prefix_list_ids = []
- protocol = "-1"
- security_groups = []
- self = false
- to_port = 0
# (1 unchanged attribute hidden)
},
] -> null
- id = "sg-0e7699ba72233ec10" -> null
- ingress = [
- {
- cidr_blocks = [
- "0.0.0.0/0",
]
- from_port = 80
- ipv6_cidr_blocks = []
- prefix_list_ids = []
- protocol = "tcp"
- security_groups = []
- self = false
- to_port = 80
# (1 unchanged attribute hidden)
},
] -> null
- name = "terraform-example-alb" -> null
- owner_id = "XXXXXXXXXXXX" -> null
- revoke_rules_on_delete = false -> null
- tags = {} -> null
- tags_all = {} -> null
- vpc_id = "vpc-01dd39250fbbe13c6" -> null
# (1 unchanged attribute hidden)
}
# aws_security_group.instance will be destroyed
- resource "aws_security_group" "instance" {
- arn = "arn:aws:ec2:us-east-1:XXXXXXXXXXXX:security-group/sg-0ebaa3fd8741f2114" -> null
- description = "Managed by Terraform" -> null
- egress = [] -> null
- id = "sg-0ebaa3fd8741f2114" -> null
- ingress = [
- {
- cidr_blocks = [
- "0.0.0.0/0",
]
- from_port = 8080
- ipv6_cidr_blocks = []
- prefix_list_ids = []
- protocol = "tcp"
- security_groups = []
- self = false
- to_port = 8080
# (1 unchanged attribute hidden)
},
] -> null
- name = "terraform-example-instance" -> null
- owner_id = "XXXXXXXXXXXX" -> null
- revoke_rules_on_delete = false -> null
- tags = {} -> null
- tags_all = {} -> null
- vpc_id = "vpc-01dd39250fbbe13c6" -> null
# (1 unchanged attribute hidden)
}
Plan: 0 to add, 0 to change, 8 to destroy.
Changes to Outputs:
- alb_dns_name = "terraform-asg-example-1620849536.us-east-1.elb.amazonaws.com" -> null
Do you really want to destroy all resources?
Terraform will destroy all your managed infrastructure, as shown above.
There is no undo. Only 'yes' will be accepted to confirm.
Enter a value: yes
aws_lb_listener_rule.asg: Destroying... [id=arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:listener-rule/app/terraform-asg-example/e8f8ce77a4f9d74c/ab66348839329aee/36b4f1e473ed77ee]
aws_autoscaling_group.example: Destroying... [id=terraform-20240724032222449100000002]
aws_lb_listener_rule.asg: Destruction complete after 0s
aws_lb_listener.http: Destroying... [id=arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:listener/app/terraform-asg-example/e8f8ce77a4f9d74c/ab66348839329aee]
aws_lb_listener.http: Destruction complete after 0s
aws_lb.example: Destroying... [id=arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:loadbalancer/app/terraform-asg-example/e8f8ce77a4f9d74c]
aws_lb.example: Destruction complete after 3s
aws_security_group.alb: Destroying... [id=sg-0e7699ba72233ec10]
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724032222449100000002, 10s elapsed]
aws_security_group.alb: Still destroying... [id=sg-0e7699ba72233ec10, 10s elapsed]
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724032222449100000002, 20s elapsed]
aws_security_group.alb: Still destroying... [id=sg-0e7699ba72233ec10, 20s elapsed]
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724032222449100000002, 30s elapsed]
aws_security_group.alb: Still destroying... [id=sg-0e7699ba72233ec10, 30s elapsed]
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724032222449100000002, 40s elapsed]
aws_security_group.alb: Still destroying... [id=sg-0e7699ba72233ec10, 40s elapsed]
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724032222449100000002, 50s elapsed]
aws_security_group.alb: Still destroying... [id=sg-0e7699ba72233ec10, 50s elapsed]
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724032222449100000002, 1m0s elapsed]
aws_security_group.alb: Destruction complete after 59s
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724032222449100000002, 1m10s elapsed]
aws_autoscaling_group.example: Still destroying... [id=terraform-20240724032222449100000002, 1m20s elapsed]
aws_autoscaling_group.example: Destruction complete after 1m23s
aws_launch_configuration.example: Destroying... [id=terraform-20240724032221829400000001]
aws_lb_target_group.asg: Destroying... [id=arn:aws:elasticloadbalancing:us-east-1:XXXXXXXXXXXX:targetgroup/terraform-asg-example/f7291f3c616cee2c]
aws_lb_target_group.asg: Destruction complete after 0s
aws_launch_configuration.example: Destruction complete after 0s
aws_security_group.instance: Destroying... [id=sg-0ebaa3fd8741f2114]
aws_security_group.instance: Destruction complete after 1s
Destroy complete! Resources: 8 destroyed.
cloud_user@553b1e446c1c:~/asg_elb_terraform$
References:
This post is licensed under CC BY 4.0 by the author.
