AWS ECS Exec to access a container's CLI running in Fargate

Posted Updated
By Hector G Serrano 3 min read

I was looking for the way to get a bash prompt to a Container running on ECS Fargate for debugging & troubleshooting purposes.

Yes, it is possible. However, the tricky part is that the ExecuteCommand API must already by enabled on the Task. From the documentation:

If a task is deployed or a service is created without the --enable-execute-command flag, you will need to redeploy the task (with run-task) or update the service (with update-service) with these opt-in settings to be able to exec into the container.

Even more, it seems we cannot enable ExecuteCommand API from the AWS Management Console. Also from the documentation:

ECS Exec is not currently supported using the AWS Management Console.

Using the AWS CLI, this command can be used to see the value of the ExecuteCommand API for a specific Task:

1
2
3
4

aws ecs describe-tasks \
    --region <AWS_REGIOM> \
    --cluster <ECS_CLUSTER_NAME> \
    --tasks <ECS_TASK_ID>

Output:

1
2
3

. . .
            "enableExecuteCommand": false,
. . .

In this case, the ExecuteCommand API is disabled.

Enabling the ExecuteCommand API

You need to update the service including the --enable-execute-command parameter.

1
2
3
4
5
6
7

aws ecs update-service \
    --region <AWS_REGIOM> \
    --cluster <ECS_CLUSTER_NAME> \
    --service <SERVICE_NAME> \
    --task-definition <TASK_DEFINITION_NAME> \
    --enable-execute-command \
    --force-new-deployment

However, you may run into the following error message when running the command if the Task Definition does not have a Task Role attached.

1

An error occurred (InvalidParameterException) when calling the UpdateService operation: The service couldn't be updated because a valid taskRoleArn is not being used. Specify a valid task role in your task definition and try again.

To solve this, create a new revision of the Task Definition attaching a Task Role from the AWS Management Console

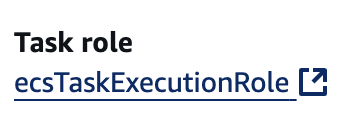

Making sure there is a Task Role attached to the Task Definition:

Source: Can not update my existing ECS service to enable execute command #6242

We should see the ECS Exec parameters enabled on Tasks running on the service.

Once the service is updated, run the following command:

1
2
3
4
5
6
7

aws ecs execute-command  \
    --region <AWS_REGIOM> \
    --cluster <ECS_CLUSTER_NAME> \
    --tasks <ECS_TASK_ID>
    --container <CONTAINER_NAME> \
    --command "/bin/bash" \
    --interactive

This time, you may run into the following errror in case the Task Role attached does not have the right permissions.

1

An error occurred (TargetNotConnectedException) when calling the ExecuteCommand operation: The execute command failed due to an internal error. Try again later.

To solve this, you can go attach an inline policy to the Task Role

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "ssmmessages:CreateControlChannel",
        "ssmmessages:CreateDataChannel",
        "ssmmessages:OpenControlChannel",
        "ssmmessages:OpenDataChannel"
      ],
      "Resource": "*"
    }
  ]
}

IMPORTANT: This change may take several minutes to take effect.

Source: How do I resolve the error “An error occurred (TargetNotConnectedException) when calling the ExecuteCommand operation” in Amazon ECS?

Finanlly, we see results

We can know get a promnpt from the container.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

$ aws ecs execute-command  \
    --region us-east-1 \
    --cluster MyECScluster \
    --task 54022f2f28d342bfb4e31c480f127e4a \
    --container nginxdemos-hello-Container \
    --command "/bin/sh" \
    --interactive

The Session Manager plugin was installed successfully. Use the AWS CLI to start a session.


Starting session with SessionId: ecs-execute-command-abz5brhab9o72lttnt6hj3fo8a
/ # pwd
/
/ # whoami
root
/ #

NOTE: /bin/bash may not be available, in such case try with /bin/sh since you may see this error:

1
2

----------ERROR-------
Unable to start command: Failed to start pty: fork/exec /bin/bash: no such file or directory
